LIGHT FIXTURES
KINETIC LIGHTS offers a wide range of light fixtures for kinetic art, interior design, stage productions, shows and event lighting applications. Our fixtures are fully compatible with our winch lifting systems, ensuring seamless integration. In addition, all fixtures can function as static, DMX controllable lighting elements when paired with our drivers. We also offer custom fixture design using our advanced LED light core solutions.

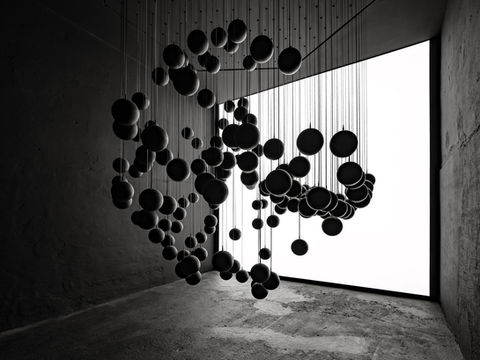

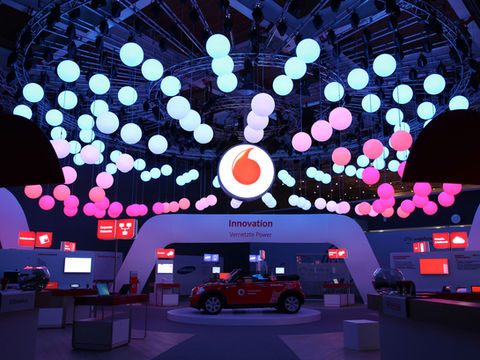

SPHERE 50
Light orb
PMMA sphere, steel cap
RGB LED illumination
Single suspension
50 cm diameter
2.35 kg
Custom sizes on request
RELATED PROJECTS
SPHERE 17
Light orb
PMMA sphere, steel cap
RGB LED illumination
Single suspension
17 cm diameter
300 g
Custom sizes on request
RELATED PROJECTS
STRING
String arrangement of small spheres
PMMA, silicone diffuser
30 controllable RGB pixels
Single suspension
380 cm | 5 cm diameter
2.5 kg
RELATED PROJECTS
MIRROR DISC
Round mirror for light tracking
Aluminum frame, PMMA diffuser
Polished aluminum mirror
180 controllable RGB pixels
3 suspension points
2 cm | 98 cm diameter
6 kg
RELATED PROJECTS
MIRROR SQUARE
Square mirror for light tracking
Aluminum frame, PMMA diffuser
Polished aluminum mirror
200 controllable RGB pixels
3 suspension points
89 x 89 cm | 2 cm
6 kg
RELATED PROJECTS
VIDEO TRIANGLE
High resolution LED video panel
Aluminum frame, ABS cover
LED video processor
22,026 pixels | 4.5 mm pixel pitch
3 suspension points
100 cm | 3.5 cm
9 kg
RELATED PROJECTS
OLED TRIANGLE
Super flat OLED or LED triangle lights
Aluminum, mirrored glass
OLEDs neutral white
9 individually dimmable light clusters
3 suspension points
95 cm | 2 cm
2.2 kg
RELATED PROJECTS

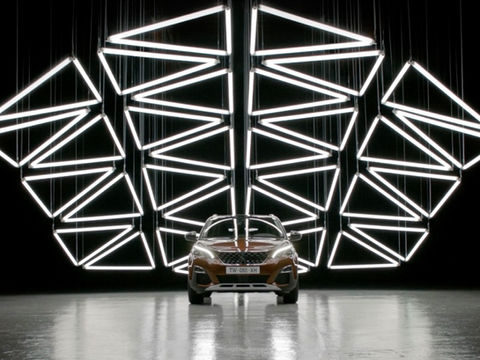

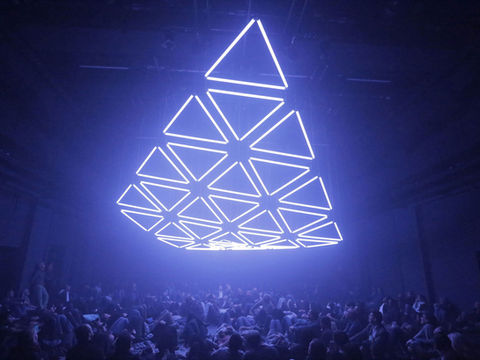

ROD TRIANGLE
Light tube traingle
Aluminum, PMMA
RGB LEDs, mono or pixel mappable
300 controllable RGB pixels
3 suspension points
180 cm | 5 cm diameter
4.8 kg
Custom sizes on request
RELATED PROJECTS
SPACE FRAME
Light tube 3D system
Aluminum, PMMA
RGB LEDs, mono or pixel mappable
100 controllable RGB pixels per rod
3D space frame connectors
185 cm | 5 cm diameter
1.6 kg per rod
Custom sizes on request
RELATED PROJECTS

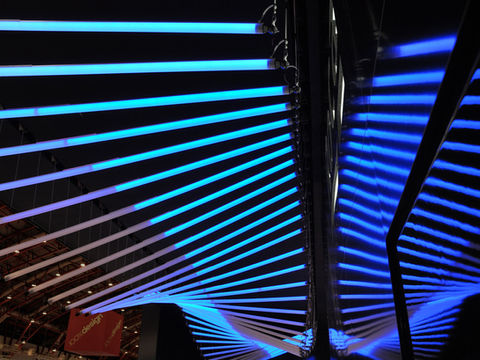

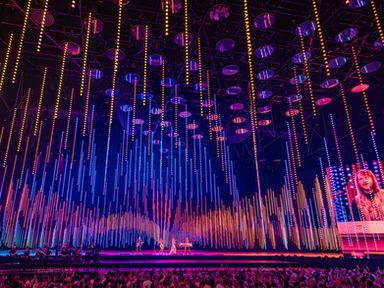

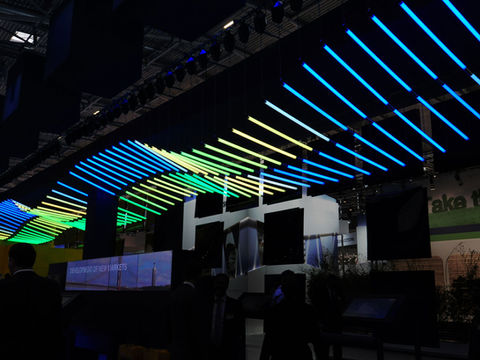

ROD
Light tube
Aluminum, PMMA
RGB LEDs, mono or pixel mappable
Single /double: 100 / 200 controllable RGB pixels
1 or 2 suspension points (vertical or horizontal)
Single: 180 cm | 5 cm diameter
Double: 360 cm | 5 cm diameter
Single /double: 1.6 / 3.5 kg
Custom lengths on request
RELATED PROJECTS
BAR
RGB LEDs, pixel mappable
Aluminum, PMMA
100 controllable RGB pixels
Wall mount, corner connectors
175 cm | 2.5 x 4 cm
1 kg
Custom lengths on request
RELATED PROJECTS
WHITE BAR
High-end architectural light bar
Aluminum profile, PMMA diffuser
Tunable white LED illumination
2 suspension points
300 cm | 4 x 4.5 cm
3.5 kg
Custom lengths on request
RELATED PROJECTS
RING
Ring light in 3 sizes
Aluminum frame, PMMA diffuser
Inner and outer edges are illuminated
60 controllable RGB pixels per meter
3 suspension points
6.5 x 2 cm | 77 / 140 / 205 cm diameter
2.5 / 4.5 / 6.5 kg
RELATED PROJECTS
DROP
Slim architectural light
Aluminum anodized, PMMA
White LED illumination
Dimmable
Single suspension
28 cm | 3.5 cm diameter
300 g
BULB
Retro architectural light
Brass socket, glass bulb
LED filament glass light bulb
Dimmable
Single suspension
100-300 g
BULB LED TYPES:
Globe G125 / Arbitrary A19 / Straight-tubular ST64 / Tubular T30-185
Other bulbs on request
RELATED PROJECTS

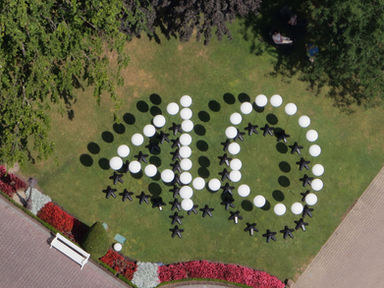

BALLOON
Light balloon (helium-filled)
ABS, latex balloon
RGB LED illumination
Single suspension
90 cm diameter
300 g
RELATED PROJECTS
POLE
Mobile event outdoor light
ABS, carbon tube, latex balloon
White LED illumination
340 cm | 60 cm balloon diameter
220/110 V AC, 50-60 Hz
Rechargeable (7h battery duration)
Weight empty: 3 kg
Weight with ballast: 22 kg
RELATED PROJECTS
OBJECT
Variety of custom objects possible
1-3 hanging points per object
100-300 g load per hanging point (Winch S)
0.5-3 kg load per hanging point (Winch M/L)
1.5–50 kg load per hanging point (Winch XL)
Our mounts allow for easy connection with almost any object or product you can think of.
RELATED PROJECTS
STAGE TECH
Variety of objects possible:
– TV/Video screens
– LED panels
– Video Projector
– Moving lights
– Motor for second motion axis
– Lasers
– and more ...
1–3 hanging points per object
Up to 50 kg load (Winch XL Double)
Up to 25 kg load per hanging point (Winch XL Single)
Development of custom mounts possible
